WD20000SQ (Super Quiet)

WD20000SQ (Super Quiet)

Category
ModelTG3500iSn
Output(kVA)3.5
Voltage(V)220/110 V
Frenquency(Hz)50/60 Hz
Weight(Kgs)56 Kgs
Packing Size(mm)630*450*280



Inquiry Now

Contact Us

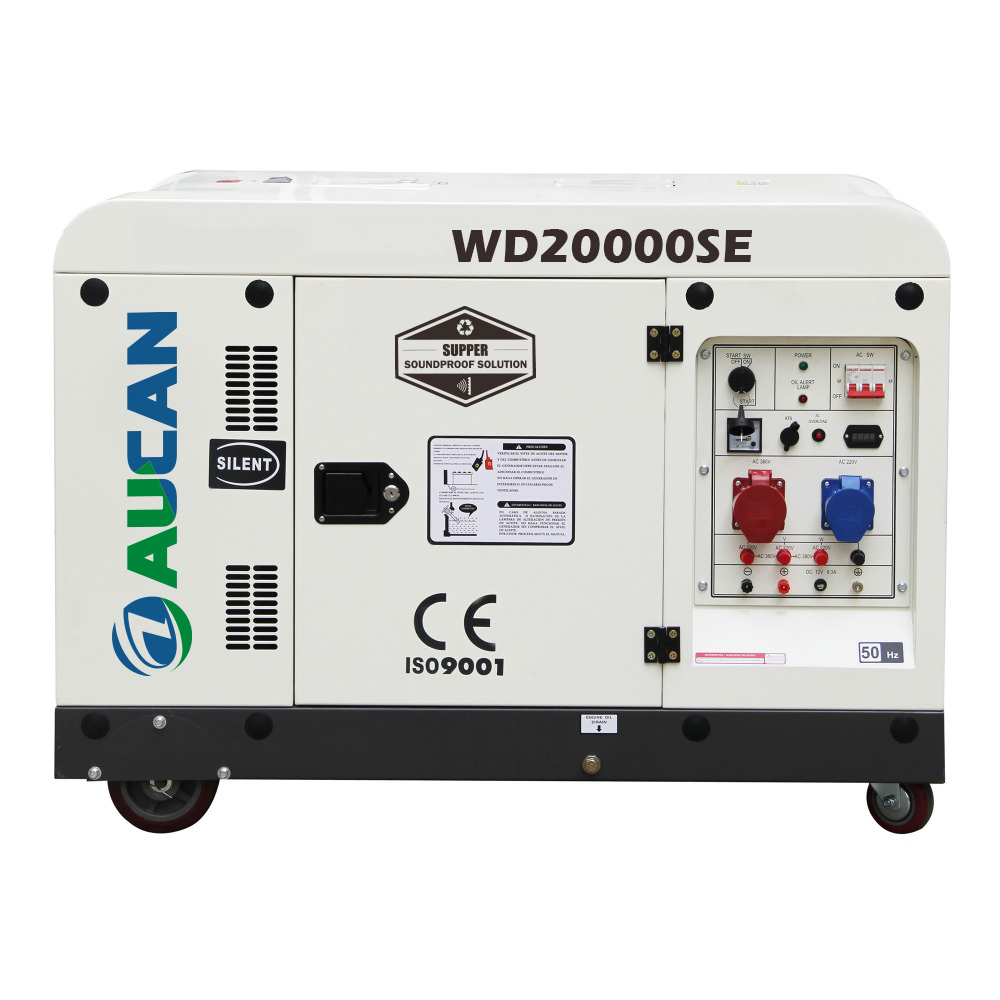

Diesel generator:(AUCAN brand)
Model WD20000E WD20000SQ
Type Revolving Magnetic Field,Single Phase Revolving Magnetic Field,Single Phase
Voltage Regulate AVR AVR
AC Frequency(Hz) 60 50 60 50
AC Output Voltage(V) 110;120;110/220;120/240 220;230;115/230 110;120;110/220;120/240 220;230;115/230
Cont.AC Output(VA) 17000 15000 17000 15000
Max.AC Output(VA) 18000 16000 18000 16000
DC Output(V/A) 12/8.3 12/8.3
Engine Model WD298F WD298F
Type Double cylinder,Air-cooled,4-stroke;Vertical Double cylinder,Air-cooled,4-stroke;Vertical
Starting System Recoil/Electric Recoil/Electric
Fuel Tank Capacity(L/gal) 25 25
Packing dimensions(mm/in.) 1050*800*890 1360*820*940
Net Weight(kg/lbs) 270 350
Per 20″ GP CNT 28 20
Per 40″ GP CNT 56 40

Aucan Catalog
