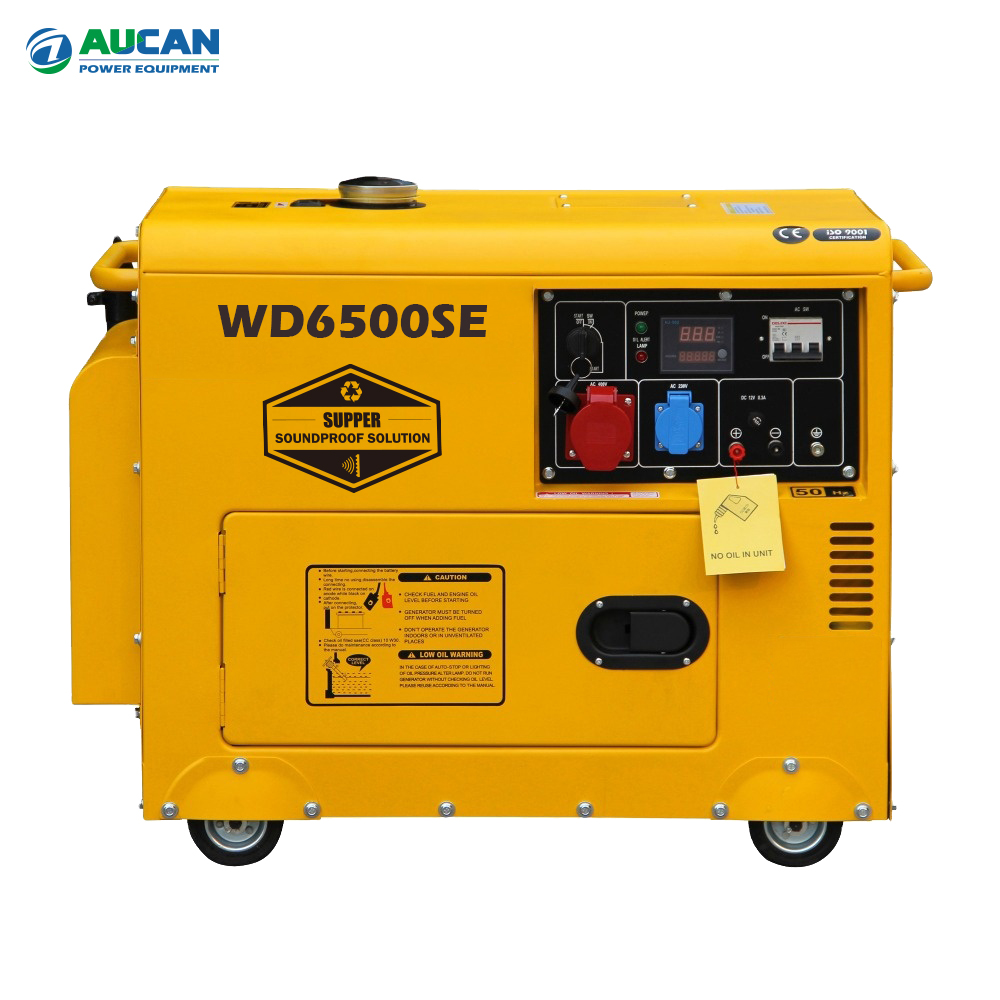

WD6500SE (Silent)

WD6500SE (Silent)

Category
ModelWD6500SE
Output(kVA)6.5 kVA
Voltage(V)110/220 V
Frenquency(Hz)50/60 Hz
Weight(Kgs)180 Kgs
Packing Size(mm)940*560*760 mm



Inquiry Now

Contact Us

Diesel generator:(AUCAN brand)
Model WD6500E WD6500SE
Type Revolving Magnetic Field,Single Phase Revolving Magnetic Field,Single Phase
Voltage Regulate AVR AVR
AC Frequency(Hz) 60 50 60 50
AC Output Voltage(V) 110;120;110/220;120/240 220;230;115/230 110;120;110/220;120/240 220;230;115/230
Cont.AC Output(VA) 5500 5000 5500 5000
Max.AC Output(VA) 6500 5500 6500 5500
DC Output(V/A) 12/8.3 12/8.3
Engine Model WD186F WD186F
Type Single cylinder,Air-cooled,4-stroke;Vertical Single cylinder,Air-cooled,4-stroke;Vertical
Starting System Recoil/Electric Recoil/Electric
Fuel Tank Capacity(L/gal) 15/3.96 15/3.96
Packing dimensions(mm/in.) 750x485x607 940*560*760
Net Weight(kg) 120 155
Per 20″ GP CNT 105 72
Per 40″ GP CNT 210 144
