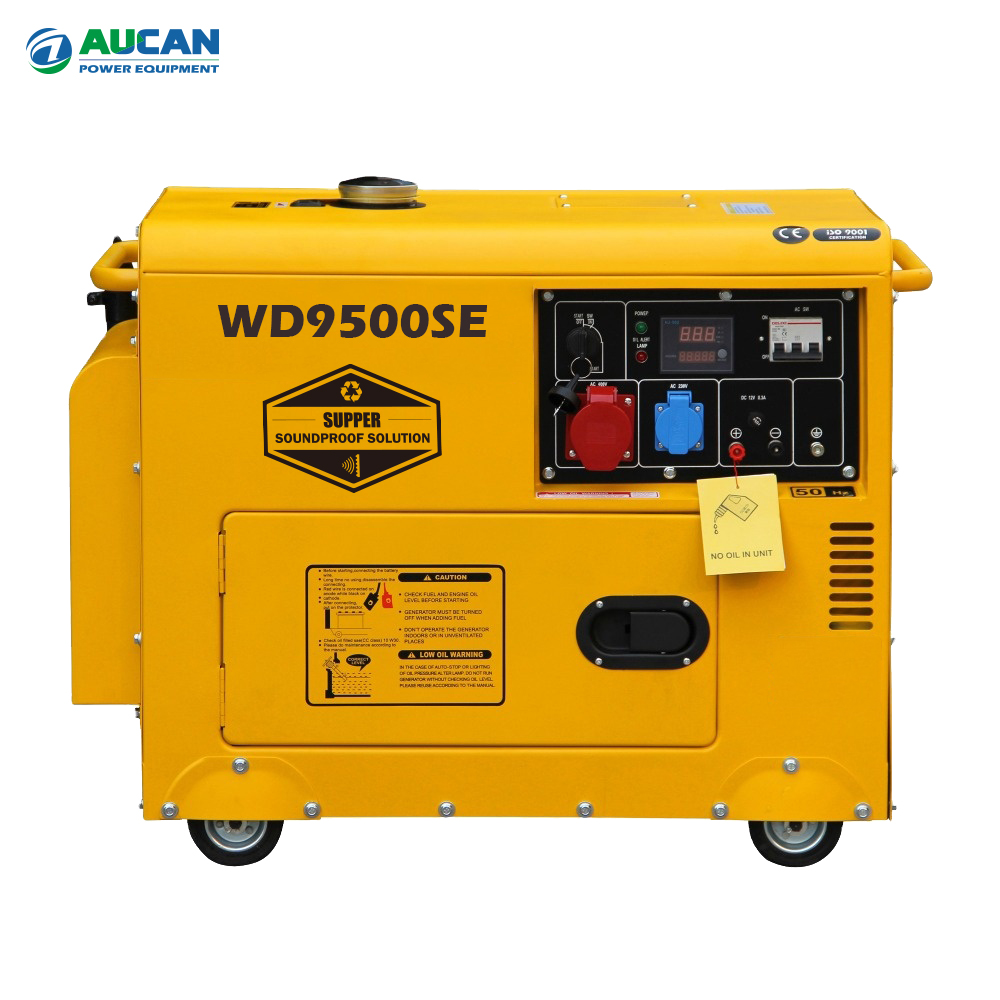

| Model | WD9500SE |
| Output(kVA) | 9.5 kVA |
| Voltage(V) | 110/220 V |
| Frenquency(Hz) | 50/60 Hz |
| Weight(Kgs) | 190 Kgs |
| Packing Size(mm) | 950*560*760 mm |
| Diesel generator:(AUCAN brand) | ||||
| Model | WD9500E | WD9500SE | ||
| Type | Revolving Magnetic Field,Single Phase | Revolving Magnetic Field,Single Phase | ||
| Voltage Regulate | AVR | AVR | ||
| AC Frequency(Hz) | 60 | 50 | 60 | 50 |
| AC Output Voltage(V) | 110;120;110/220;120/240 | 220;230;115/230 | 110;120;110/220;120/240 | 220;230;115/230 |
| Cont.AC Output(VA) | 8500 | 7500 | 8500 | 7500 |
| Max.AC Output(VA) | 9500 | 8000 | 9500 | 8000 |
| DC Output(V/A) | 12/8.3 | 12/8.3 | ||
| Engine Model | WD194F | WD194F | ||
| Type | Single cylinder,Air-cooled,4-stroke;Vertical | Single cylinder,Air-cooled,4-stroke;Vertical | ||
| Displacement(cc) | 460 | 460 | ||
| Starting System | Recoil/Electric | Recoil/Electric | ||
| Packing dimensions(mm/in.) | 770*540*700 | 950*760*860 | ||
| Net Weight(kg/lbs) | 150 | 180 | ||
| Per 20″ GP CNT | 84 | 30 | ||
| Per 40″ GP CNT | 176 | 60 | ||
