| Model | TG3500iSn |
| Output(kVA) | 3.5 |
| Voltage(V) | 220/110 V |
| Frenquency(Hz) | 50/60 Hz |
| Weight(Kgs) | 56 Kgs |
| Packing Size(mm) | 630*450*280 |
| Diesel generator:(AUCAN brand) | ||||

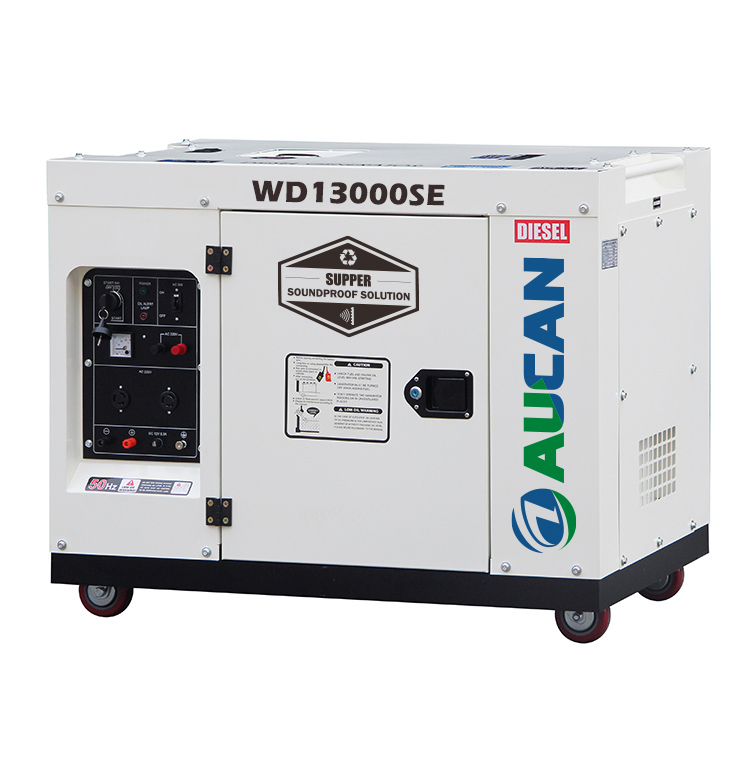

| Model | WD13000E(Open) | WD13000SQ(Silent) | ||
| Type | Revolving Magnetic Field,Single Phase,3 wires ,Brushless | |||
| Voltage Regulate | AVR | |||
| AC Frequency(Hz) | 60 | 50 | 60 | 50 |
| AC Output Voltage(V) | 110;120;110/220;120/240 | 220;230;115/230 | 110;120;110/220;120/240 | 220;230;115/230 |
| Cont.AC Output(W) | 11500 | 10000 | 11500 | 10000 |
| Max.AC Output(W) | 13000 | 11000 | 13000 | 11000 |
| DC Output(V/A) | 12/8.3 | |||
| Engine Model | WD1110F | |||
| Type | Single cylinder,Air-cooled,4-stroke;Vertical | |||
| Noise Level | 73dba | 68dba | ||
| Starting System | Recoil/Electric | |||
| Digital Screen | Voltage, Current and Frequency, Pressure, and Temperature, hours | |||
| Fuel Tank Capacity(L/gal) | 25-30 | |||
| Packing dimensions(mm/in.) | 960*650*760 | 1100*760*880 | ||
| Net Weight(kg/lbs) | 180 | 200 | ||
| Per 20″ GP CNT | 105 | 75 | ||
| Per 40″ GP CNT | 210 | 150 | ||
